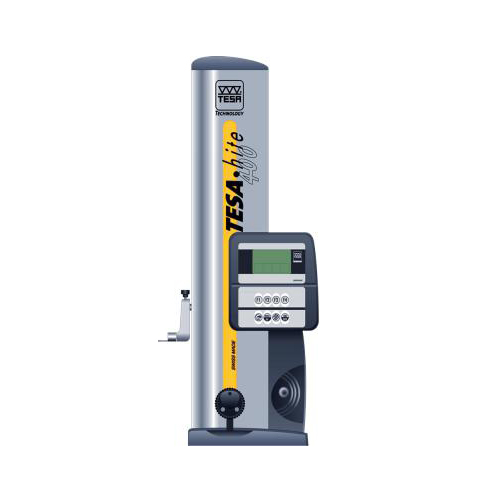

TESA-Hite 400

产品内容

· 主要特征 Key Features

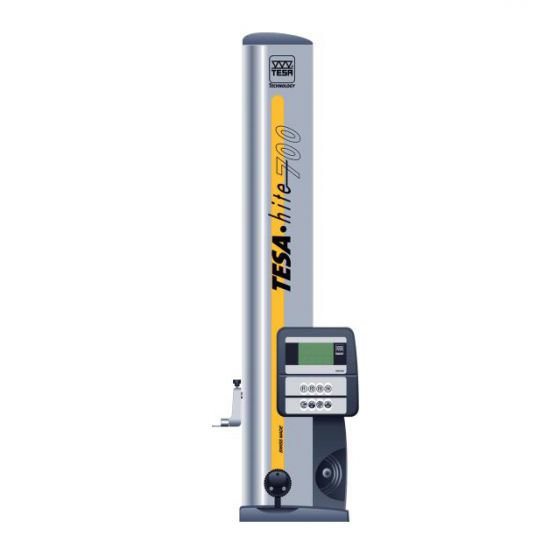

TESA 25年的研发经验,推出极高性价比的测高仪TESA-HITE 400/700

她必定成为车间的首选配置

• 更大的测量范围

• 电子装置具有IP65的防护等级以防止液体和灰尘的侵入

• 内置气浮,已固定安装的面板

• 采用TESA的专利技术,在测量直径时自动寻找顶点

• 可进行平行度和垂直度的测量

• TESA专利的光电测量系统

• MICRO-HITE兼容的附件,包括测杆及夹持块

• 每台测高仪带有SCS校准证书

· 技术指标  Performance Specifications



Model/ 型号规格


TESA Hite

400

700

测量范围/ Measuring span

mm

415

715

应用范围/ Application range

配标准附件/ With standard accessory

配订货号00760057的测头座

 With probe insert holder No. 00760057

配订货号S07001622的测头座

With probe insert holder No. S07001622

mm





 570



 625



795



770



925



1095

最大允许误差(带标准附件)/ Max. permissible error, with standard accessory

(2.5+4L)μm,

(L单位为米/L in m)

重复性(带标准附件)/ Repeatability, with standard accessory

平面:2μm  孔内: 3μm

最大运动速度/Max. Displacement speed

500 mm/s

测量力/Measuring force

1.5N±0.5N

机械垂直度/ Mechanical Perpendicularity

μm

<10

<15

主机重量/ Net weights, without panel and battery pack

kg

27

32

充电一次使用时间/ Life time of the rechargeable battery

60小时/ 60hours



· 环境要求Required Specification

存储温度范围: -10~ 60

操作温度范围: 10~ 40

工作温度: 20±0.5

相对湿度: 80%

工作电压: 可充电电池6,750毫安或110 ~ 240, 50 ~ 60赫兹交流电压输入

Storage temperature range: -10 to 60

Operating temperature range: 10 to 40

Working temperature range: 20±0.5

Relative humidity: 80%, noncondensing

Power supply: Rechargeable battery pack, 6V,750mA or 110 to 240 Vac , 50 to 60 Hz



· 控制面板测量功能/ Functions of Control Panel

1) 主要特点/ Key Features:

更大的测量范围

内置气浮,固定安装的控制面板

0.0001,0.001,0.01mm分辨率选择

测量范围内任意位置清零

控制面板IP65防护等级

RS232数据传输

Large measuring span

Build-in air cushion,and fixed panel

0.0001,0.001,0.01 mm in resolution

Zero-setting of display anywhere within the measuring range

Electronics completely protected against liquids or dust penetration

RS232 digital output for safe data transmission

TESA HITE400-001.jpg
